Air Assisted Airless
Merkur
Pumps and Packages
Precise pressure and output for high performance on all of your fine finishing applications
Achieve the right flows at the right pressures to fit all of your spraying needs. With four air motor sizes and 13 different models to choose from, the new and improved Merkur fine finish packages are designed to improve productivity, reduce costs, lower emissions and provide consistent, high quality finishes for all of your demanding applications.
The Merkur packages are proven to outperform and outlast other pumps in their class. |
 |
Merkur Brochure
Merker ES Brochure
Highest technology air motor on the market
Low air consumption for increased efficiency
Muffler provides low operating noise levels
External valve access allows for easy servicing and online replacement to minimize downtime
Operator Control Panel located at operator height for easy setting and monitoring
Throat seal and rod enclosure protects pumped material and wet cup from contamination but can be easily removed to monitor and service
|
 |
- Catalyzed lacquers
- Shear-sensitive coatings
- Waterborne lacquers
|
|
- Air-assisted wood finishing supply pump
- Air-assisted general metal finishing supply pump
- Wood furniture and cabinetry finishing applications
- General metal finishing applications
|
 |
Pump Lower with easy-to-flush design and 300 Series stainless steel construction
- Air Valve provides smooth and rapid changeover
- Quick Removal Coupler allows for easy disassembly of the pump lower from the air motor
- Cylinder and Displacement Rod designed to handle a broad range of coatings
- Extended wet cup for external filling and monitoring of Throat Seal Liquid (TSL) Levels
- Throat and Piston Packings are self-adjusting and spring-loaded
- 360° Inlet Swivel Makes it easy to access the pail from almost any location
|
 |
| |
|
Graco has a model to meet your performance needs
- Choose between airless, air assisted and air assisted electrostatic spray technologies.
- Decide which mounting configuration fits your needs. Cart, wall or stand mounts are available.
- Many Graco packages already include a variety of accessories such as siphon hose, hopper, heater and filter options.

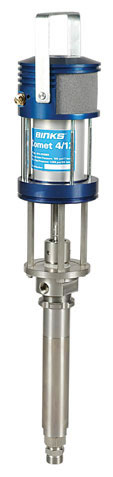

Binks Comet 4/12 Pump
 |
Name : Comet 4/12 bare pump
Part Number : 0114-016068
Family : Comet
Type : 2-Ball Piston Pump
Max Output Pressure : up to 1200 psi (84 bar)
Ratio : 12:1
Wetted Materials : SS fluid section, SS hard chrome coated pump rod
Air In : 100 psi (7 bar) 1/4" nptm and 1/4" npsm
Fluid In : 0114-013801 fluid inlet siphon tube adapter required
Fluid Out : 1/8 NPT(f)
Flow Curve : volume is 2.165 cu. in. (27cc)
Capacity : 0.4 gpm (1.5 ( lpm) at 60 cycles/minute
Accessories : high pressure filter (0110-009130-1)
Service Brochure
Comet 4/12 Brochure |
Description :
The Binks Comet 4/12 pump is designed to supply a variety of materials for airless and air-assisted airless spraying applications.
