Binks Pressure Tanks

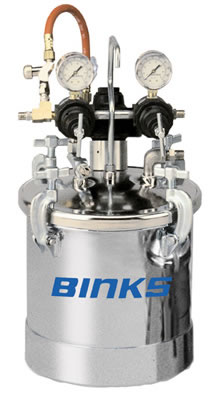

Pressure Pot Name : 2 Gallon Stainless Steel
Part Number : 83S-2XX Series

Family : Stainless Steel Tanks
Type : Pressure Tank

Wetted Materials : Stainless Steel Lid, Wetted Lid parts, Zinc Plated tank shell
Air In : Air Inlet = 1/4" NPS


Fluid Out : Fluid Outlet = 3/8" NPS

Capacity : 2.8 Gallons - 83S-221 shown
Fits Pail Size : 1 Gallon
Regulation : Single, Double, or none
Agitator : Optional (Indirect), Reciprocating, Standard (Direct)
Liners : PT-78-K10 or K60
Bottom Outlet : Bottom Outlet Conversion Kit Available order QMS-435

Description :

All Stainless Steel lid, including all wetted parts and fittings.
Disposable liner kits are also available for the pressure tanks.
No Reg. - No Agitation. 83S-200
Single Reg.-No Agit. 83S-210
Double Reg.-No Agit. 83S-220
Double Reg.-Opt. Agit. 83S-223 (I)
Double Reg. Recip. Agit 83S-226 (R)
Single Reg.-Std. Agit. 83S-211 (D)
Double Reg.-Std Agit. 83S-221 (D)
Single Reg. -Opt. Agit. 83S-213 (I)

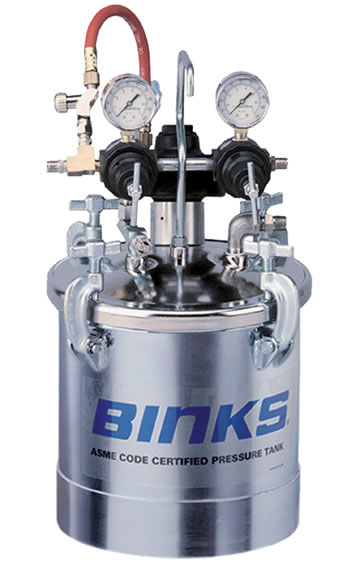

Zinc Plated Lid Name : PT ASME Zinc Plated Lid/Shell
Part Number : 83C Series

Family : PT ASME Code Tanks
Type : Pressure Tank



Max Output Pressure : 80 PSi

Wetted Materials : Zinc Plated
Air In : Air Inlet = 1/4" NPS


Fluid Out : Fluid Outlet = 3/8" NPS

Capacity : 2 Gallon
Fits Pail Size : accepts one gallon pails
Regulation : Single or Double
Agitator : Direct Drive or None
Liners : PT-78-K10 or K60
Bottom Outlet : None

Description :

Zinc plated lid and all wetted parts in lid assembly and tank shell. Single Reg. No Agit. 83C-210 Double Reg. No Agit. 83C-220 Single Reg. Std Agit. 83C-211 Double Reg. Std Agit. 83C-221 83c221 shown
